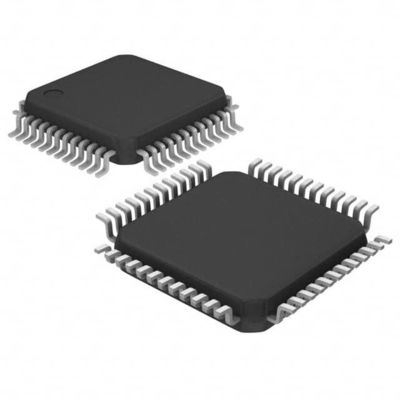

S912ZVLA12F0MLF Flash Memory IC Chip S12 MagniV Microcontroller IC 16 Bit 32MHz 128KB
S12 Flash Memory IC Chip
,MagniV Flash Memory IC Chip
,S912ZVLA12F0MLF
S912ZVLA12F0MLF S12 MagniV Microcontroller IC 16-Bit 32MHz 128KB (128K X 8) FLASH 48-LQFP (7x7)
Features
• Operates from car battery
• Integrated LIN transceiver
• Ultra-reliable industrial
• Fast ADC
Success Stories
• LIN-based user-interface in Europe and Asia
• LIN-based immobilizer receiver in US
• LIN-based mirror control in Europe
• LIN-based airquality sensor in Europe
Target Applications
• LIN nodes
• LIN switch panel/user interface
• LIN actuators, sensors
• HVAC • Lighting controls
• Ambient lighting
• Seat positioning
• Ultrasonic sensors
Product Attributes
|
Product Status
|
Active
|
|
|
Core Processor
|
S12Z
|
|
|
Core Size
|
16-Bit
|
|
|
Speed
|
32MHz
|
|
|
Connectivity
|
CANbus, I²C, IrDA, LINbus, SCI, SPI, UART/USART
|
|
|
Peripherals
|
LVD, POR, PWM, WDT
|
|
|
Number of I/O
|
34
|
|
|
Program Memory Size
|
128KB (128K x 8)
|
|
|
Program Memory Type
|
FLASH
|
|
|
EEPROM Size
|
512 x 8
|
|
|
RAM Size
|
1K x 8
|
|
|
Voltage - Supply (Vcc/Vdd)
|
5.5V ~ 18V
|
|
|
Data Converters
|
A/D 10x10b; D/A 1x8b
|
|
|
Oscillator Type
|
Internal
|
|
|
Operating Temperature
|
-40°C ~ 125°C (TA)
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
48-LQFP
|
|
|
Supplier Device Package
|
48-LQFP (7x7)
|
|
|
Base Product Number
|
S912
|
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
