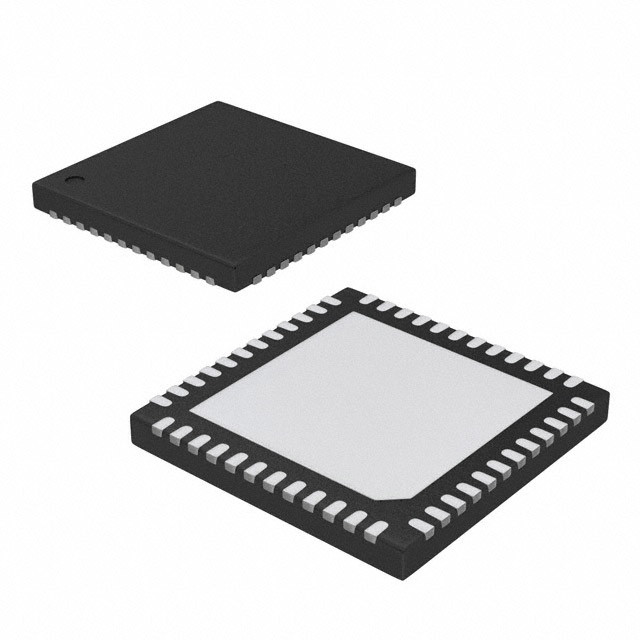

ADF7021BCPZ-RL7 Computer IC Chips RF TxRx Only General 48-WFQFN Exposed Pad CSP
CSP Computer IC Chips
,RF Computer IC Chips
,ADF7021BCPZ-RL7
FEATURES
Low power, narrow-band transceiver
Frequency bands using dual VCO
80 MHz to 650 MHz
862 MHz to 950 MHz
Modulation schemes
2FSK, 3FSK, 4FSK, MSK
Spectral shaping
Gaussian and raised cosine filtering
Data rates supported
0.05 kbps to 32.8 kbps
2.3 V to 3.6 V power supply
Programmable output power
−16 dBm to +13 dBm in 63 steps
Automatic PA ramp control
Receiver sensitivity
−130 dBm at 100 bps, 2FSK
−122 dBm at 1 kbps, 2FSK
−113 dBm at 25 kbps, raised cosine 2FSK
Patent pending, on-chip image rejection calibration
On-chip VCO and fractional-N PLL
On-chip, 7-bit ADC and temperature sensor
Fully automatic frequency control loop (AFC)
Digital received signal streCM GROUPh
indication (RSSI) Integrated Tx/Rx switch
0.1 μA leakage current in power-down mode
Product Attributes
|
Product Status
|
Active
|
|
|
Type
|
TxRx Only
|
|
|
RF Family/Standard
|
General ISM < 1GHz
|
|
|
Protocol
|
-
|
|
|
Modulation
|
2FSK, 2GFSK, 3FSK, 4FSK, FHSS, GMSK, MSK
|
|
|
Frequency
|
80MHz ~ 650MHz, 862MHz ~ 950MHz
|
|
|
Data Rate (Max)
|
32.8kbps
|
|
|
Power - Output
|
13dBm
|
|
|
Sensitivity
|
-130dBm
|
|
|
Memory Size
|
-
|
|
|
Serial Interfaces
|
SPI, UART
|
|
|
Voltage - Supply
|
2.3V ~ 3.6V
|
|
|
Current - Receiving
|
17.5mA ~ 26.4mA
|
|
|
Current - Transmitting
|
13.5mA ~ 32.3mA
|
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
48-WFQFN Exposed Pad, CSP
|
|
|
Supplier Device Package
|
48-LFCSP (7x7)
|
|
|
Base Product Number
|
ADF7021
|
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
