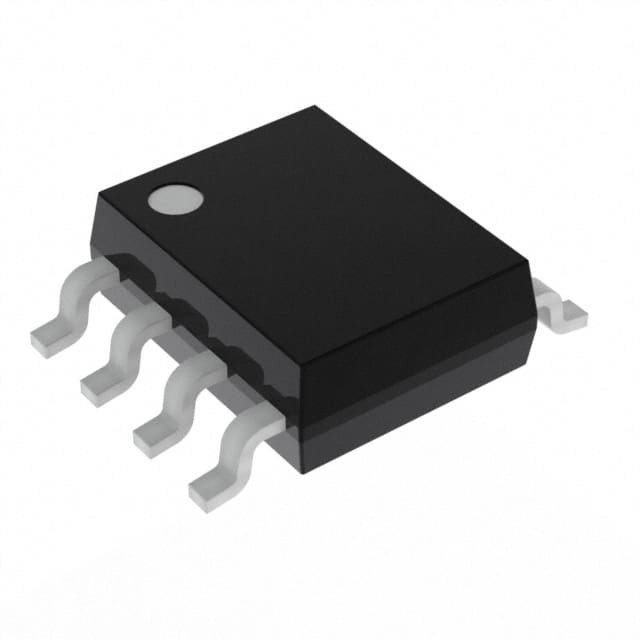

MLX90360LDC-ACD-000-RE LED Driver ICs Position Sensors Angle Linear Position Measuring
MLX90360LDC-ACD-000-RE LED Driver ICs Position Sensors Angle Linear Position Measuring MLX90360LDC-ACD-000-RE LED Driver ICs Position Sensors Angle Linear Position Measuring

MLX90360LDC-ACD-000-RE LED Driver ICs Position Sensors Angle Linear Position Measuring

Product Details:
Place of Origin: Original
Brand Name: Melexis Technologies NV
Certification: RoHS Compliant
Model Number: MLX90360LDC-ACD-000-RE
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7 -10 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000pcs/Month
Contact Now

Detail Information
Manufacturer:: Melexis Technologies NV Product Category: Position Sensors - Angle, Linear Position Measuring
Description: SENSOR ROTARY 360DEG SMD Package/Case: 8-SOIC
Detailed Description: Hall Effect Sensor Linear, Rotary Position External Magnet, Not Included Gull Wing Series: Triaxis®
High Light:

8-SOIC LED Driver ICs

,

Position Sensor LED Driver ICs

,

MLX90360LDC-ACD-000-RE

Product Description

Features

Triaxis Hall Technology

On Chip Signal Processing for Robust Absolute Position Sensing Simple Magnetic Design Programmable Measurement Range Programmable Linear Transfer Characteristic (Multi-points or Piece-Wise-Linear) Selectable Analog (Ratiometric) or PWM Output 12 bit Resolution - 10 bit Thermal Accuracy 48 bit ID Number option Single Die – SOIC-8 Package RoHS Compliant Dual Die (Full Redundant) – TSSOP-16 Package RoHS Compliant



Legend:

Temperature Code: L for Temperature Range -40°C to 150°C, K for Temperature Range -40°C to

125°C, E for Temperature Range -40°C to 85°C.

Package Code: DC for SOIC-8, GO for TSSOP-16

Option Code:      AAA-xxx: Die version

                            xxx-000: Standard version

                            xxx-200: (pre-programmed analog)

Packing Form: RE for Reel, TU for Tube

Ordering example: MLX90360LGO-ACD-000-TU







Product Attributes

Product Status
Active
For Measuring
Linear, Rotary Position
Technology
Hall Effect
Rotation Angle - Electrical, Mechanical
0° ~ 360°, Continuous
Linear Range
-
Output
PWM
Output Signal
-
Actuator Type
External Magnet, Not Included
Linearity
-
Resistance Tolerance
-
Voltage - Supply
4.5V ~ 5.5V
Mounting Type
Surface Mount
Termination Style
Gull Wing
Operating Temperature
-40°C ~ 150°C
Package / Case
8-SOIC (0.154", 3.90mm Width)
Supplier Device Package
8-SOIC
Base Product Number
MLX90360

Environmental & Export Classifications
ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A001A2A
HTSUS 8542.39.0001
